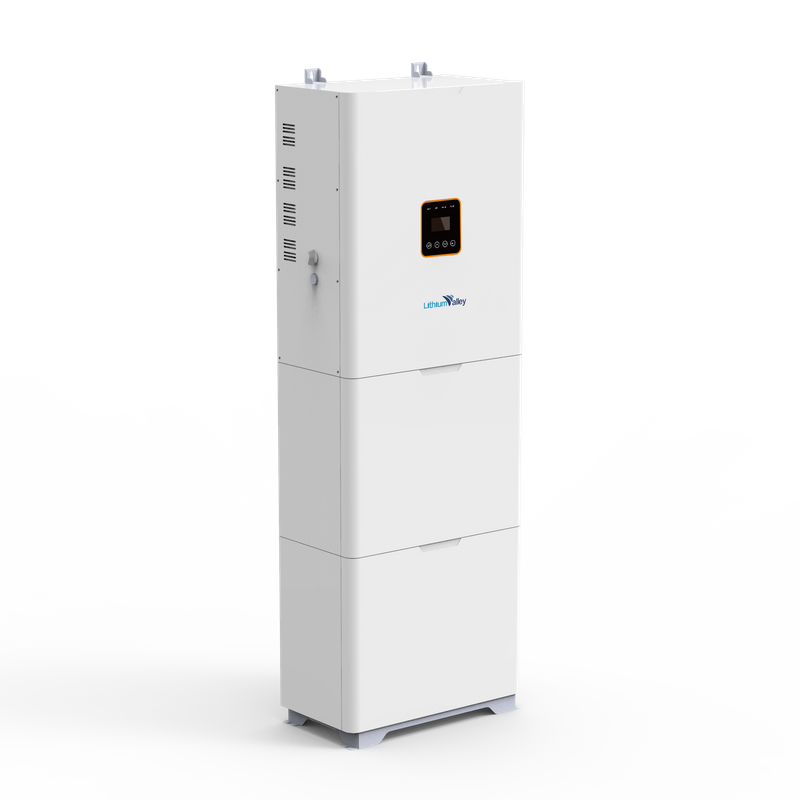

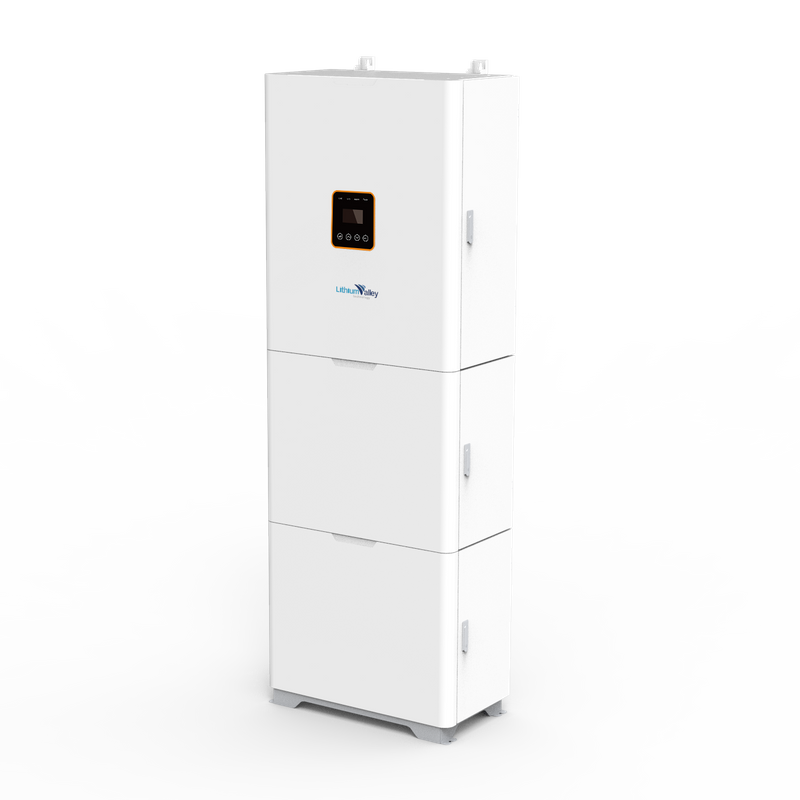

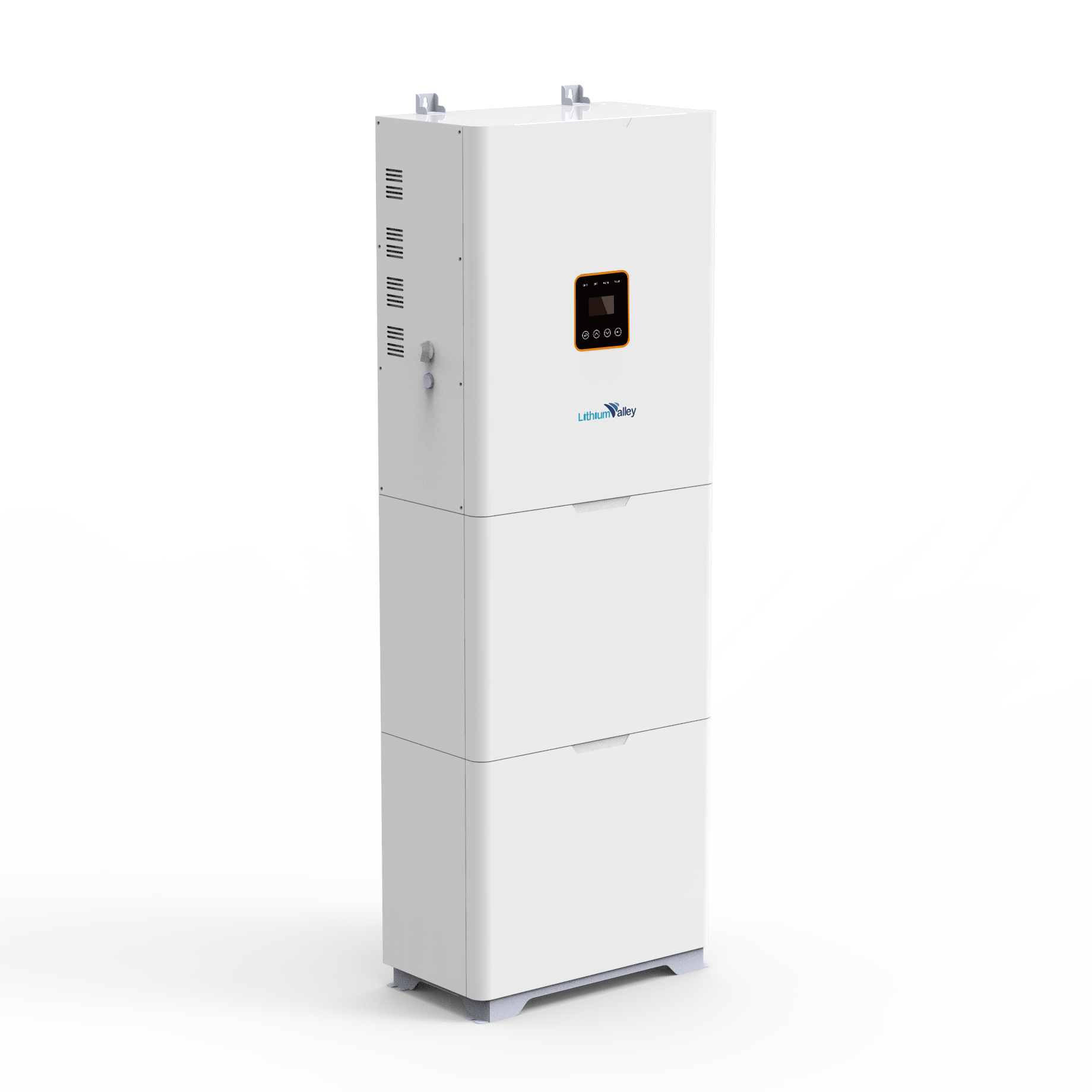

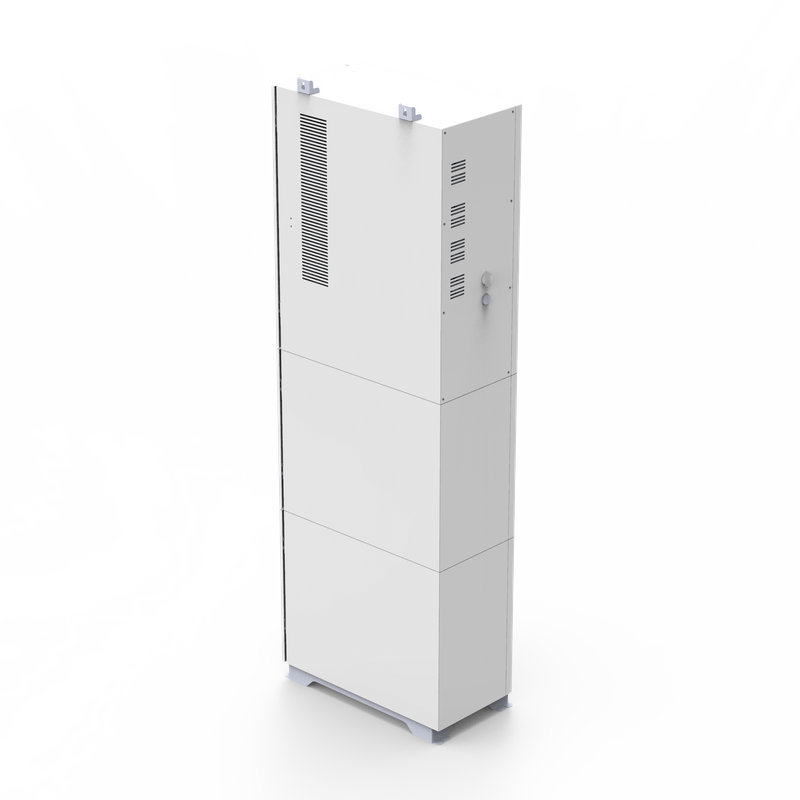

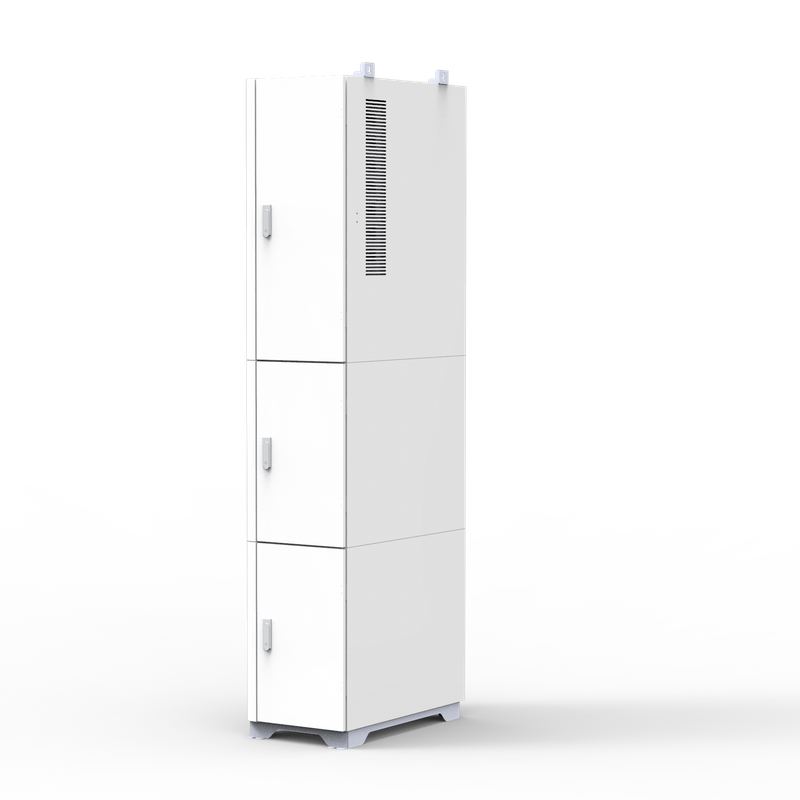

Stackable Integrated Battery

Smart Household Energy Storage System
• High-voltage LiFePO4 battery module,Single module is 51.2V 100Ah.

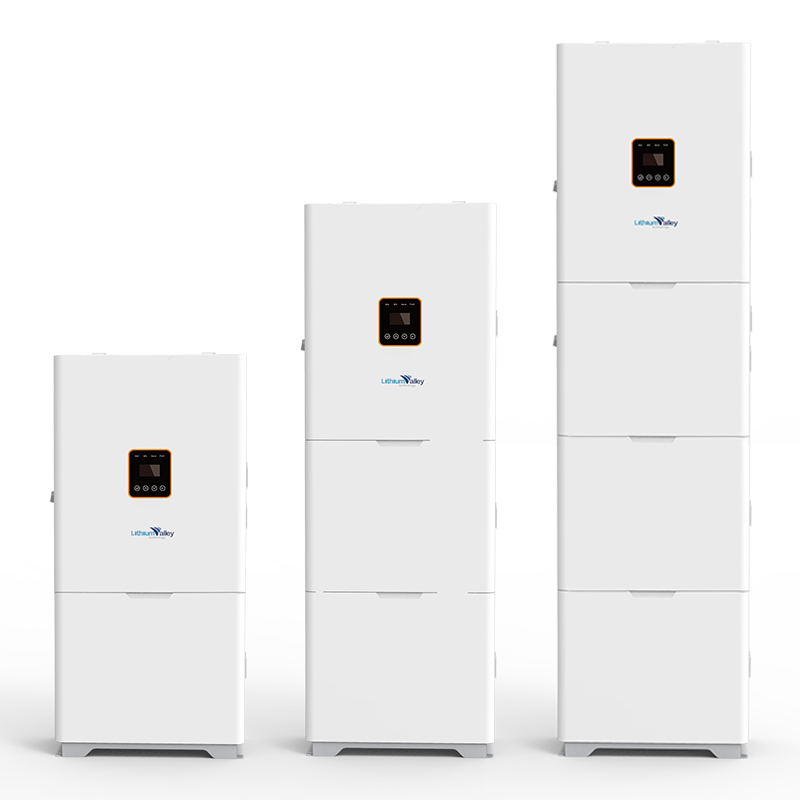

• 1 to 3 layers recommended.
• Cobalt Free Lithium Iron Phosphate (LFP) Battery: Maximum Safety, Life Cycle and Power.
•Applicable on grid or hybrid on and off-Grid solar energy storage system.
• Self-Consumption Optimization for Residential and Commercial Applications.
• Modular Design Simplifies Transport and Installation.
Availability:


Model

51.2V
200Ah

51.2V
300Ah

51.2V
400Ah

51.2V
500Ah

51.2V
600Ah

Number of layers

1 layers

2 layers

2 layers

3 layers

3 layers








Energy

10.24KWh

15.36KWh

20.48KWh

25.6KWh

30.72KWh

Operating Voltage
Range

43.2V~56.16V

Cell technology

Lithium-iron phosphate (LiFePO4)

Life cycle

6000times @80%DOD

Charge current/Discharge current

190A

190A

190A

Dimension (L*W*H)mm

653*350*1370

653*350*1890

653*350*2410

PV input power

12KW

MPPT number

4

PV voltage range

350V/85V - 500V

MPPT voltage range

120V-500V

Single MPPT input current

12A

Rate AC output power

8KVA

AC Output Voltage

120/240Vac(split phase), 208Vac(2/3 phase),230Vac(single phase)

AC Output Frequency

50/60Hz

Grid Type

Split phase, 2/3 phase, Single Phase

Max Output Current

38.3A

PF

0.8leading0.8lagging

Output THDI

< 2%

Display

LCD

Communication

Modbus, RS485, WIFI, 4G

Operating temperature

-20℃~55

Environment

Indoor

Relative humidity

5%95%

Cooling

Natural convection and fan cooling
